Thermostats control your home’s HVAC by turning heating and cooling on or off based on temperature settings — and their wiring color codes help technicians install and repair them safely and correctly.

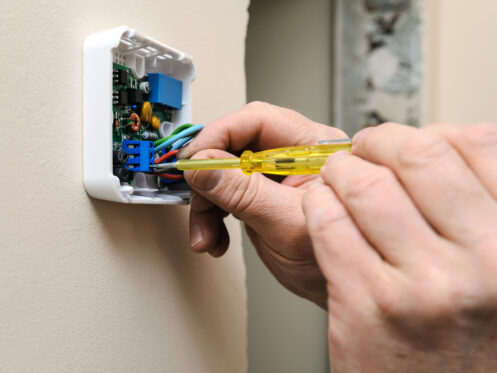

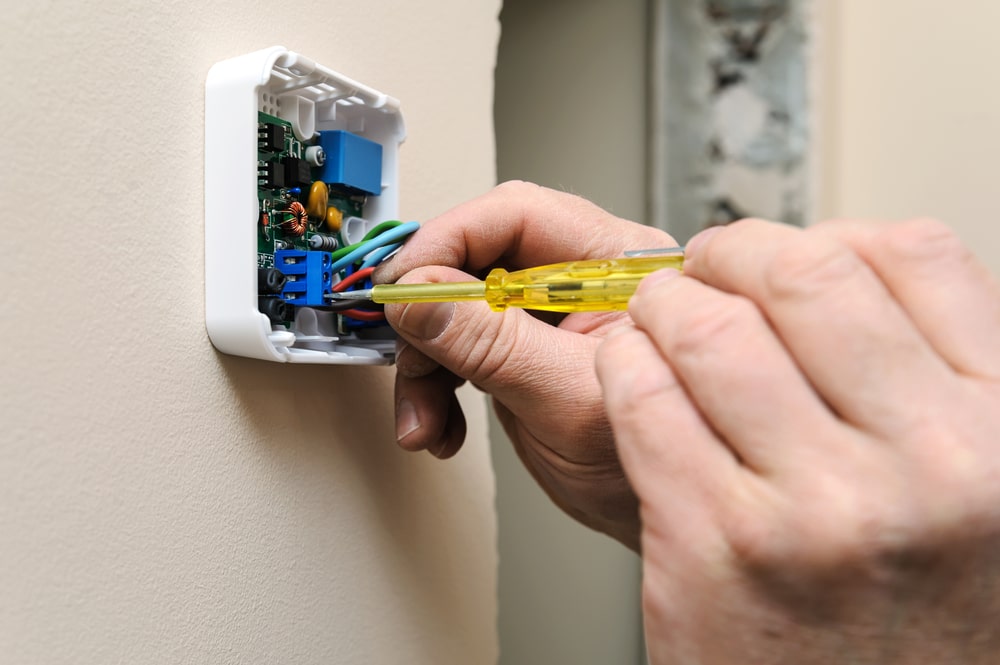

Opening up the thermostat, wire colors are the first thing you’ll notice. There should be six different colors, with each wire inside the unit serving a specific purpose. These colors are standardized to make it easier for HVAC technicians to connect and repair thermostats and avoid dangerous errors.

Between the summer highs ranging from the upper 70s to the low 90s and the below-freezing winters, Denver residents need their thermostats to work reliably year-round to keep their home temperature comfortable. At High 5 Plumbing Heating, Cooling, & Electric, our team is well-versed in HVAC and electrical systems, and we’re available to assist with your thermostat installation or repair needs.

Purpose of Thermostat Wire Color Codes

The distinct colors of each wire inside your thermostat indicate the wire’s purpose. Each wire lines up with a different terminal. These standards are industry-wide, meaning (almost) every brand uses the same colors to indicate the same function. This helps mitigate most safety concerns, making it easier to connect thermostats with little risk of electric shock or damage to the HVAC system due to incorrect hookups.

Standard Thermostat Wire Color Codes

Thermostat wire connection codes are determined by the colors of the wires. The industry standard color codes include:

  • Red wire (Rc): The Red Rc wire serves as the power source for your air conditioner system, sending a signal to the AC condenser or compressor to turn on.
  • Red wire (Rh): The Red Rh wire connects to the heating system, activating the heat relay or valve to turn on the heat when the thermostat signals the need for warmth.
  • White wire: The white wire is connected to the heating system, activating the furnace or air handler when it’s time for heat.
  • Yellow wire: The yellow wire on the thermostat is connected to the compressor, controlling the air conditioning system or condenser unit.
  • Green wire: The green wire connects to the furnace fan or air handler, which circulates the air through your home.
  • Orange/blue (OB) wire: You’ll only need to connect an orange wire if you have an air-source heat pump. It reverses the valve operation from hot to cold by reversing the refrigerant flow.
  • Black, blue, or “C” common wire: The black or blue wire on your thermostat, also known as a “common” wire, provides the return path for electrical current, stabilizing the thermostat.

There are also wires without universal color, including the emergency heat wire, the auxiliary heat wire, humidification/dehumidification controls, and outdoor temperature sensor connections.

Wiring Configurations and Compatibility

While color coding is an excellent way to track which wires go where, it’s not foolproof, especially since there are numerous makes, models, and brands of thermostats and HVAC systems. Some issues you may come across when replacing your old thermostat include:

  • Extra terminals that don’t correspond with your HVAC system.
  • Different voltage capacity.
  • Extra wires that your new thermostat doesn’t use.
  • Smart thermostats with different power requirements than your old thermostat.
  • Wire colors not matching up as you were expecting.

An expert in HVAC systems and electric work knows how to handle compatibility issues with ease, installing new wiring or making the necessary adjustments to safely install your new thermostat. When you call High 5, we’ll provide recommendations on various thermostat options that fit your home and needs, helping you avoid issues and making it easy to get the system you want.

Importance of Proper Wiring Practices

Proper wiring practice is important for your safety and to prevent damage to the HVAC and electrical systems. Standard wiring practices include:

  • Always adhering to local electrical standards and codes.
  • Turning off the power first at the circuit breaker or the unit’s master switch.
  • Using the correct, insulated tools to disconnect the old thermostat and connect the new unit to avoid damage.
  • Never mixing up wires or connecting them in the wrong places.
  • Using appropriate materials, ensuring correct wire gauges and materials.
  • Keeping wiring connections secure and solid.
  • Making sure wires aren’t overloaded, kinked, or crowded together.
  • Wearing appropriate safety gear, like gloves, when working on an electrical system.
  • Proper wiring labeling to prevent future mixups (use wire labels or masking tape).

Upgrading and Replacing Thermostats

Upgrading your thermostat gives benefits such as:

  • Smart control options like remote access and comfort control automation.
  • Programmable features for lower energy bills.
  • Zoning system compatibility with ductless mini-split systems.
  • Increased home value.

If you’re ready to replace your thermostat with a newer model, upgrading is easy with High 5. We’ll work with you to find one that suits your needs and install it at your earliest convenience, so you can enjoy the newest technology and enhanced home comfort right away. We have offices in Denver, Littleton, and Golden, serving the Mile High City and surrounding areas.

Contact the HVAC Specialists at High 5 for Expert Thermostat Installation Services

We offer comprehensive HVAC services in Denver and throughout the South Platte River Valley. Contact us if you need a new thermostat installed or if your system isn’t working. We’ll install your new thermostat with expert precision, so you don’t have to worry about the safety of your heating and cooling system. Before we leave, we’ll explain how your new thermostat works and answer all your questions.

Contact us today and discover why we’re a leading local HVAC contractor in Denver. We offer all the HVAC services you need in one place, including installations, repairs, and maintenance services.
